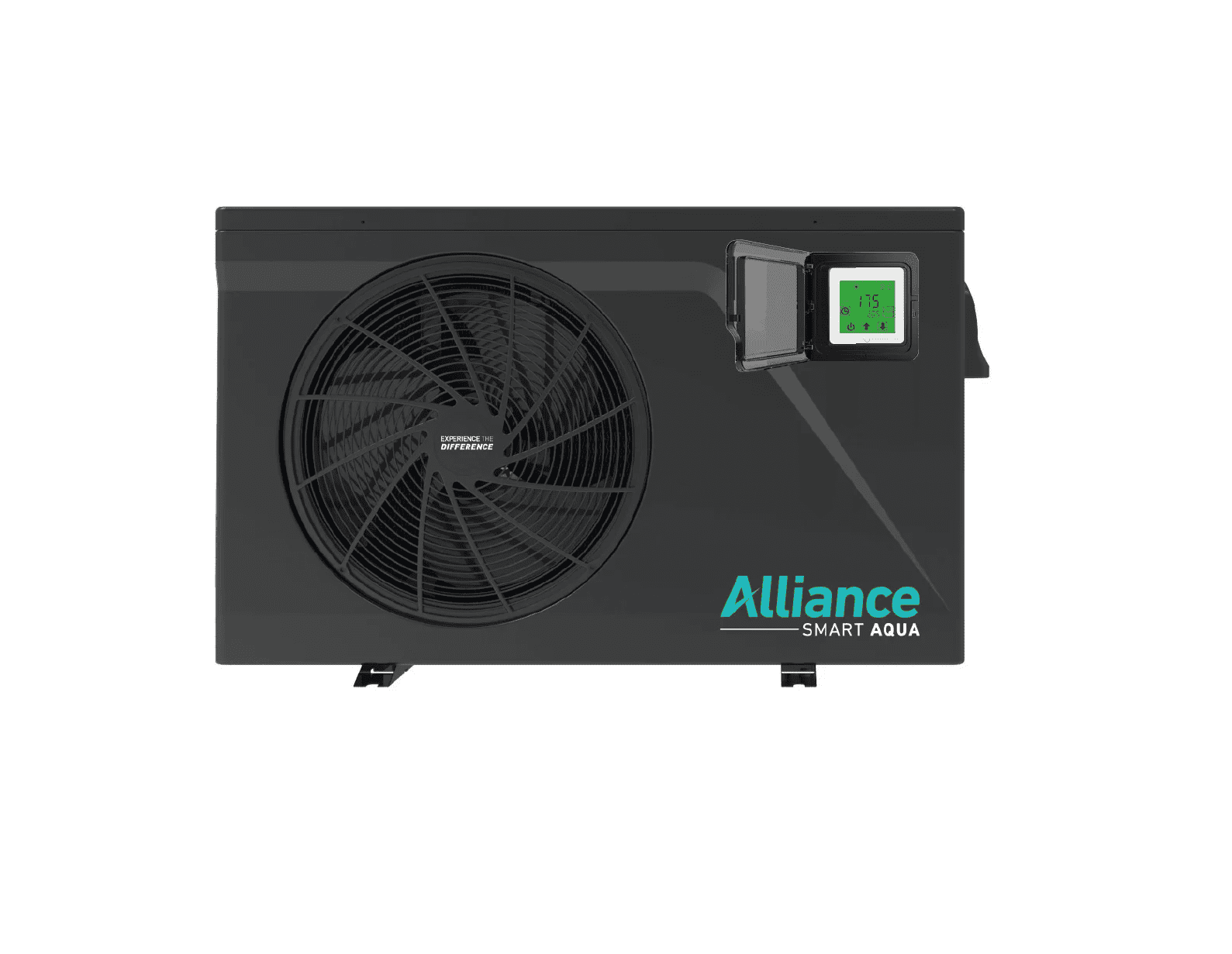

Alliance Smart Aqua R32 Inverter Pool Heat Pump – 7kW

From R20 050,00

Alliance Smart Aqua R32 7kW inverter pool heat pump, with a low-noise Whisper mode, touch-screen control and solar-PV-ready integration.

Best for: small pools and plunge pools

Prefer to talk? Call +27 61 271 4473 or WhatsApp us.

Overview

The Alliance Smart Aqua 7kW heats your pool with an inverter heat pump, which adjusts its speed to the heat needed instead of cycling on and off. That makes it efficient and quiet, and Whisper mode lowers the noise further. It uses R32 refrigerant and can be linked to a Smart Grid solar inverter, so surplus solar power heats the pool.

Plank and Sons Services supplies, installs and services this product with our own technicians. We’re based in Gauteng and take on projects across South Africa on request.

Best for

Small pools and plunge pools

Key features

  • Inverter compressor, which Alliance says is about 30% more efficient than standard on/off pool heat pumps
  • Low-noise fan with Whisper mode
  • R32 refrigerant, with a lower global warming potential than R410A
  • 3.5" LCD touch-screen controller with scheduling
  • Wi-Fi app control with the optional Alliance Wi-Fi module (upgrade, sold separately)
  • Smart Grid (SG) Ready, so it can use surplus solar PV power to heat the pool
  • Titanium-tube heat exchanger in a PVC shell for long life in pool water
  • UV-resistant, colour-fast casing, backed nationwide by Alliance (Fourways Group) with a 5-year warranty (T&Cs apply)

Specifications

ModelALLPH70R32-INV
Heating capacity2.0–7 kW
Power consumed0.196–1.21 kW
COP10.2–5.78
Power supply230 V / 50 Hz
Max power input1.57 kW
Rated current6.8 A
Noise38–47 dB(A)
Nominal water flow3 m³/h
Max water pressure drop1.8 kPa
Net dimensions (L × W × H)935 × 360 × 608 mm
Net weight40 kg
RefrigerantR32
CompressorRotary, inverter
Operating air temperature-7 to 43 °C
Water connection50 mm
Set water temperature9 °C (cooling) / 40 °C (heating)
Controller3.5" LCD touch screen
Warranty5 years (T&Cs apply)

Contact us for pricing, installation options and availability. We can supply the unit only, or supply, install and commission it with our own team.

Specifications from the manufacturer's published data.

How installation works

  1. Free site assessment. We visit, check the space, electrical supply and access, and confirm exactly what you need.
  2. Design and quote. We size the right unit and accessories for your property and send a clear, no-obligation quote.
  3. Supply. We supply the unit and all installation materials.
  4. Installation and commissioning. Our own team installs, connects and commissions the system, and shows you how to use it.
  5. Servicing. Keep it running at its best with scheduled servicing or a custom Service Level Agreement.
