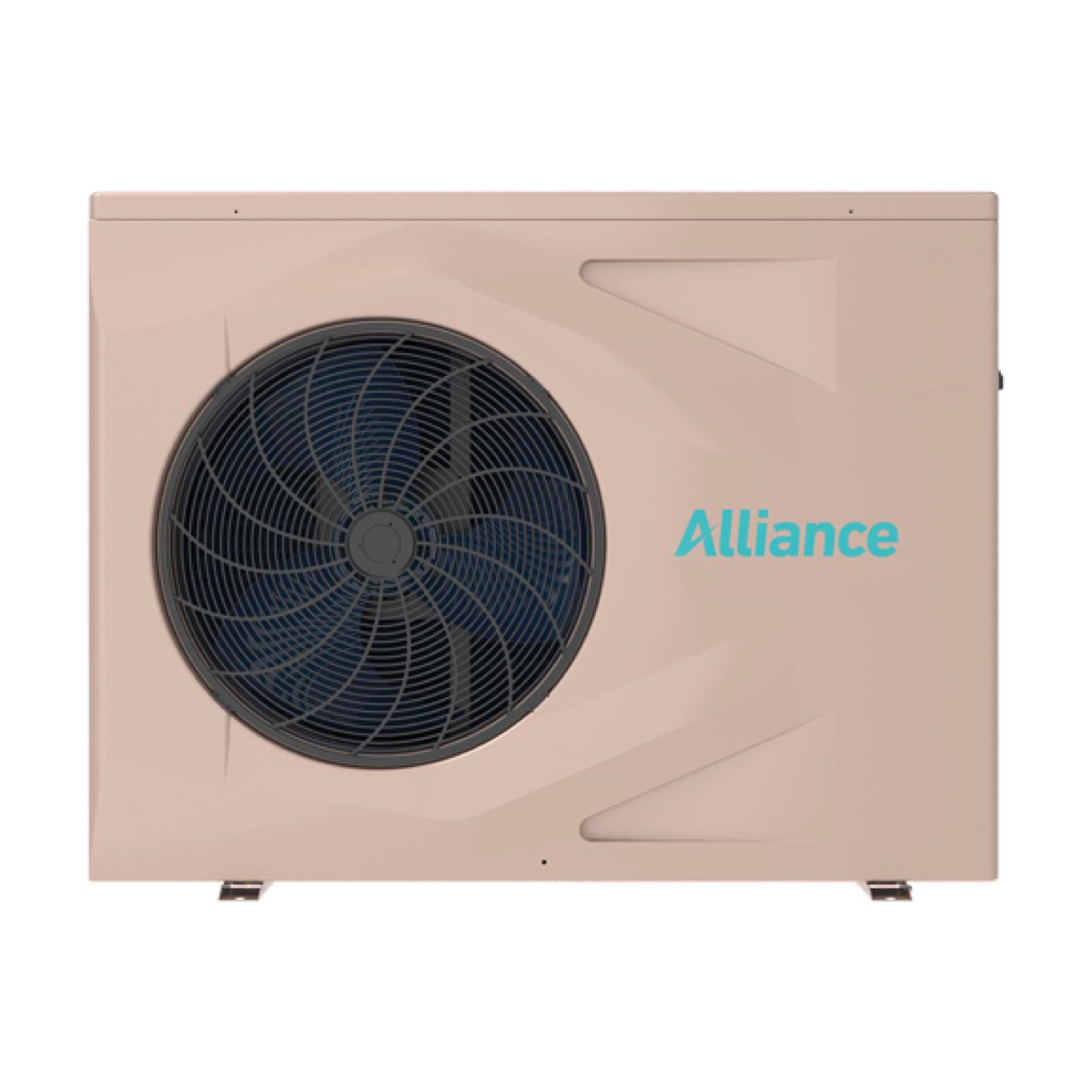

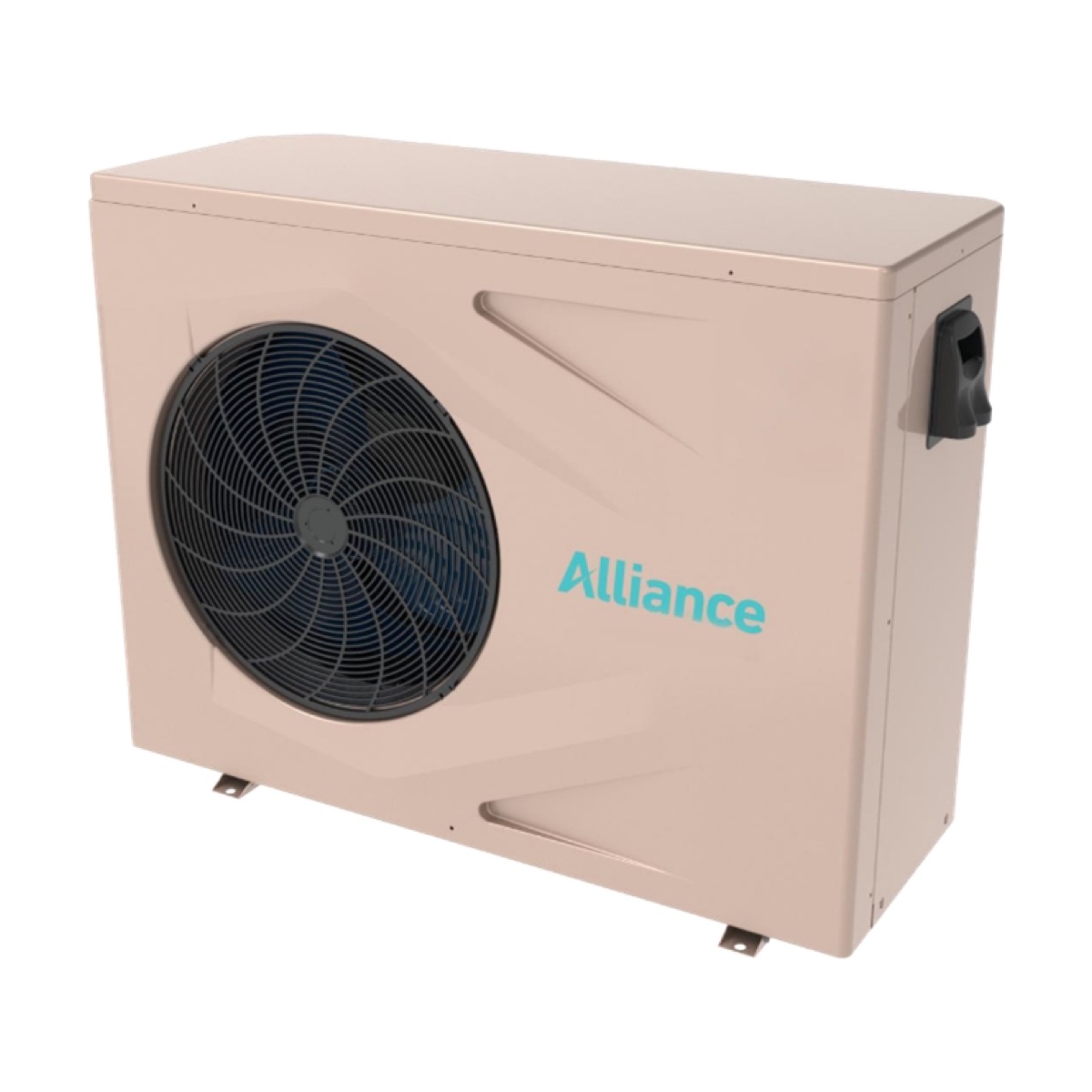

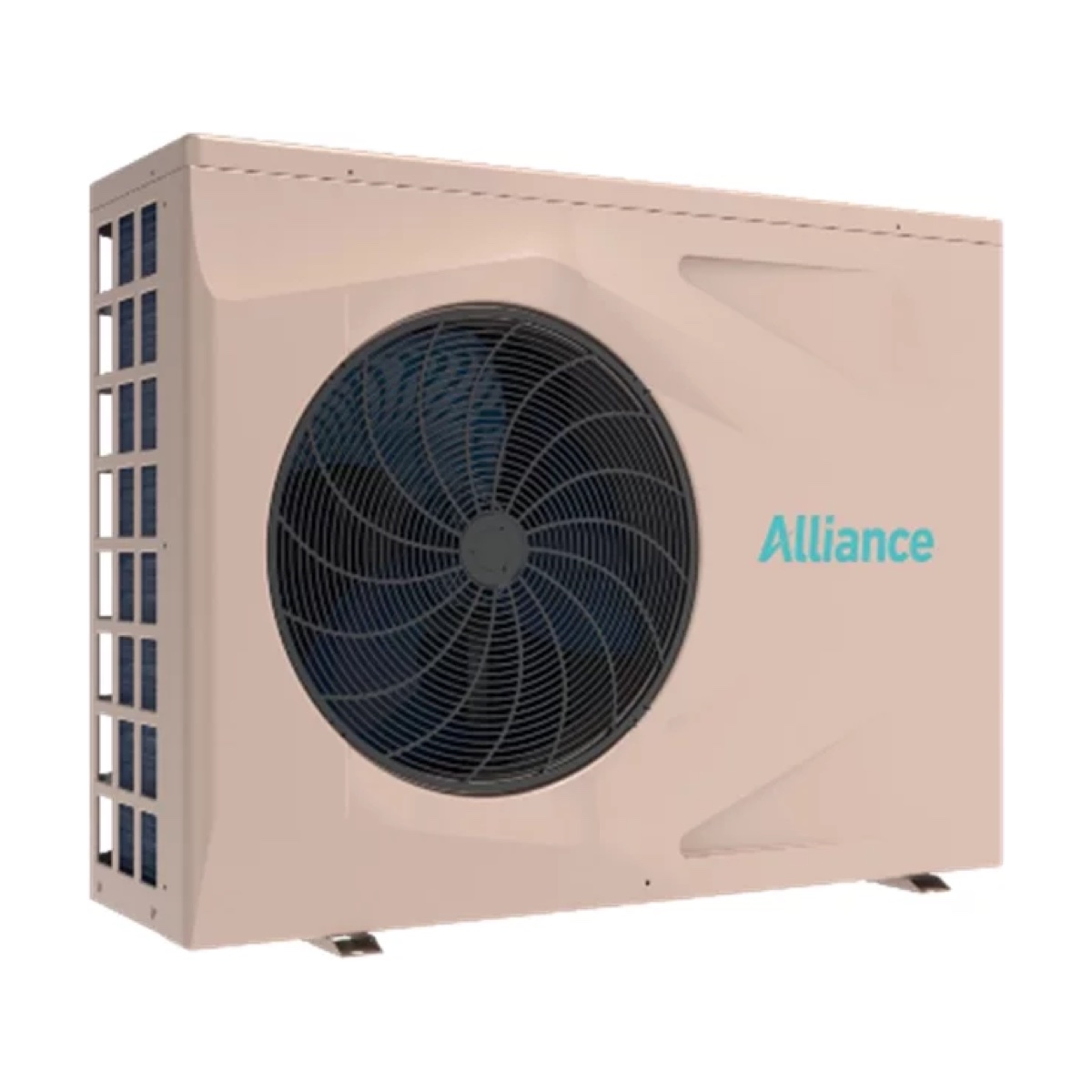

Alliance High Temp Domestic Heat Pump (3.5kW)

From R19 810,00

Alliance 3.5kW high-temperature split heat pump that heats your geyser up to 70 °C, at a fraction of the cost of an element.

Best for: smaller households and single geysers

Prefer to talk? Call +27 61 271 4473 or WhatsApp us.

Overview

The Alliance ALLHT35R134 captures heat from the outside air and moves it into your geyser, which makes it three to four times more efficient than a standard electric element. Its R134a high-temperature design heats water up to 70 °C and keeps working from -7 °C to 45 °C. It retrofits to an existing geyser and is supported by Alliance branches across South Africa.

Plank and Sons Services supplies, installs and services this product with our own technicians. We’re based in Gauteng and take on projects across South Africa on request.

Best for

Smaller households and single geysers

Key features

  • High-temperature design heats water up to 70 °C
  • Three to four times more efficient than a standard electric geyser element (Alliance)
  • Works from -7 °C to 45 °C ambient, day and night and in cloudy or rainy weather
  • Retrofits to an existing hot-water cylinder or geyser
  • Automatic start-up and shutdown with a multi-function touch-screen controller
  • R134a refrigerant and electronic expansion valve
  • Partial ABS casing to help prevent rust
  • Backed nationwide by Alliance branches

Specifications

ModelALLHT35R134
Heating capacity3.5 kW
Rated power input0.815 kW
COP4.3 (outdoor 20 °C, water heated 15–55 °C)
Hot water output87.5 L/h
Rated / max running current4 A / 6.8 A
Max power input1.48 kW
Water flow0.6 m³/h
Water pressure drop5 kPa
Noise48 dB(A)
Weight52 kg
Power supply230 V / 50 Hz
Max outlet water temperature70 °C
Operating range-7 to 45 °C
RefrigerantR134a
Water connectionDN20
Heat exchangerPatented tube-in-shell
ControllerMulti-function touch screen
CasingPartial ABS (plastic)

Contact us for pricing, installation options and availability. We can supply the unit only, or supply, install and commission it with our own team.

Specifications from the manufacturer's published data.

How installation works

  1. Free site assessment. We visit, check the space, electrical supply and access, and confirm exactly what you need.
  2. Design and quote. We size the right unit and accessories for your property and send a clear, no-obligation quote.
  3. Supply. We supply the unit and all installation materials.
  4. Installation and commissioning. Our own team installs, connects and commissions the system, and shows you how to use it.
  5. Servicing. Keep it running at its best with scheduled servicing or a custom Service Level Agreement.
